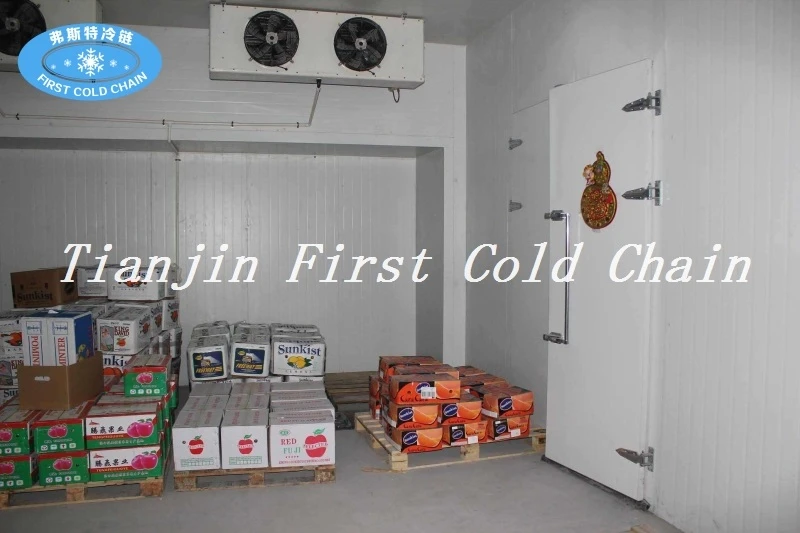

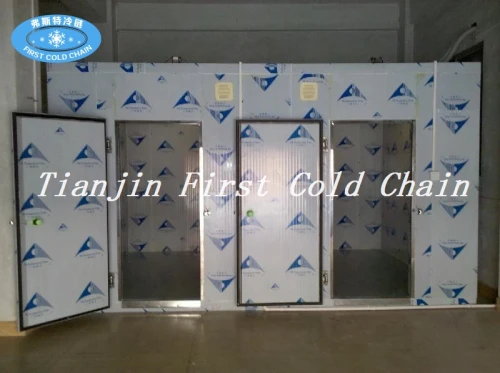

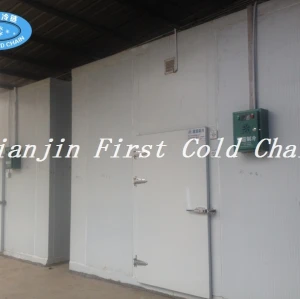

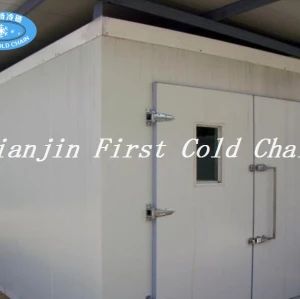

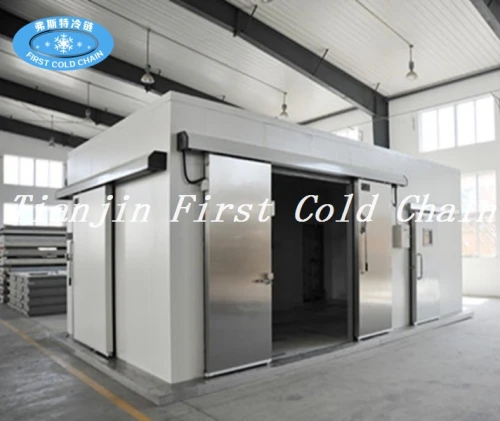

High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
High Quality PU Panel Complex Cold Room for Meat, Fruit and Vegetable
Price
US $10000-150000
Model
Cold room
MOQ
1 set

Item specifics

Refrigerant
R22 (R404A )Freon for Selection
Structure
Assembled
Suitable for
Factory
Refrigerating System
Brand Compressor Unit
Usage
Fresh Keeping, Frozen, Deep Freezer
Refrigerating System
Brand Compressor Unit
Transport Package
Sea Worthy Packing
After-Sales Service
Assisting Service

Review

Description

Cold room Product Description
cold room Features:
1. Temperature range: -40º C ~ + 20º C are all available
2. Size: Customization.
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency...
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5 º C ~ + 10 º C
Freezer storage temperature: -25 º C ~ + 18 º C
Quick-frozen storage temperature: -40 º C ~ + 18 º C
The Constant temperature: Customer's request
Storage of produce: Customer's request
Other accessories: World-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Application fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.


Refrigeration equipment configuration table

6 surface thermal insulation material

NO.

Name

Model

Unit

Qty

Note

Brand

1

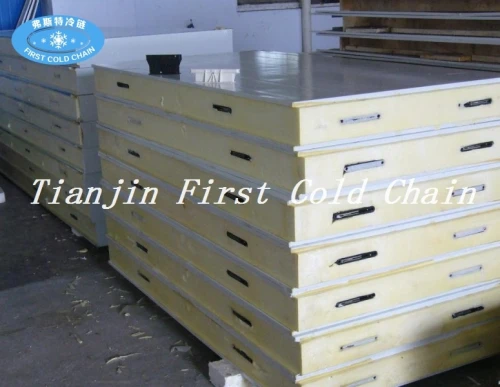

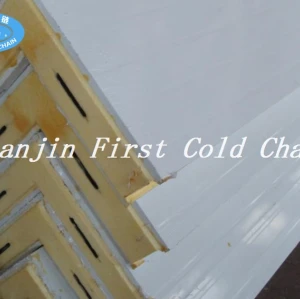

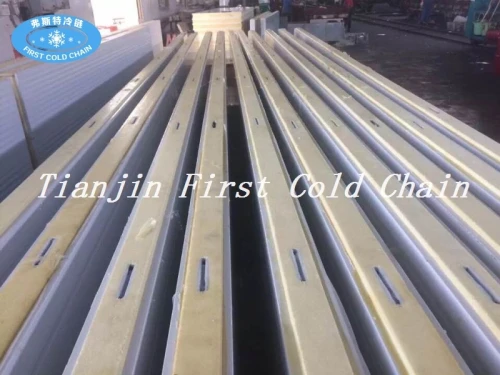

PU double color steel insulation board

-40 ℃ Blast room

2*2*2m

δ:150mm

24

Thickness:δ150mm,Thick steel:δ0.42mm,Bulk density:40±2kg/m³,Fire rating : B2

2

PU double color steel insulation board

-25~-18 ℃ Cold room

2*2*2m

δ:150mm

24

thickness:δ150mm,Thick steel:δ0.42mm,Bulk density:40±2kg/m³,Fire rating : B2

3

PU double color steel insulation board

-25~-18 ℃ Cold room

2*5*2m

δ:150mm

48

Thickness:δ100mm,Thick steel:δ0.42mm,Bulk density:40±2kg/m³,Fire rating : B2

1.1

Manual sliding door,



1.7×0.7m×100mm



set

3

The door frame is made of aluminum alloy,Color steel plate thickness&0.5mm

3

Air curtain



set

3



4

Lighting lamp
LED

30W

set

6

Moisture-proof

CHINA

5

Plate hoisting material



set

3




                              Refrigeration Equipment

1



2*2*2 m Bitzer Compressor unit

FST-S4T5.2Y
Q=3.6kw
-45 45
R404A

(380V,50HZ)

sets

1



Bitzer compressor

1.1

Ceiling type air cooler

DJS50

set

1

Copper tube aluminum fin plate spray treatment

Distance:10-12mm





2

2*2*2 m Bitzer Compressor unit

-25~-18



FST-4CES-3Y
Q=2.91kw
-30 40
R404A

(380V,50HZ)









2.1

Ceiling type air cooler

DJ30

Set

1

Distance:9mm





3

2*5*2 m Bitzer Compressor unit

-25~-18

FST-4DES-5Y-
Q=4kw
-30 40
R404A

(380V,50HZ)

Set

1



Bitzer compressor

3.1

Ceiling type air cooler

DJ40

set

1

Copper tube aluminum fin plate spray treatment

Distance:6mm





Refrigeration valves

1, Cut-off valve CBV
2, Filter DML
3, Solenoid valve CSV
4, Expansion valve TGES6

set

3



    Danfoss













    Danfoss

4

Electric system control device

1

Electrical automatic control

1#  Electrical automatic control

set

3

China
