High quality Cold Storage / China Cold Room for seafood from China
- Price
- US $10000-100000
- Model
- FLK
- MOQ
- 1 set
Item specifics
- Refrigerant
- R22 (R404A )Freon for Selection
- Structure
- Assembled
- Suitable for
- Factory
- Refrigerating System
- Brand Compressor Unit
- Usage
- Fresh Keeping, Frozen, Deep Freezer
- Refrigerating System
- Brand Compressor Unit
- Transport Package
- Sea Worthy Packing
- After-Sales Service
- Assisting Service
Review
Description

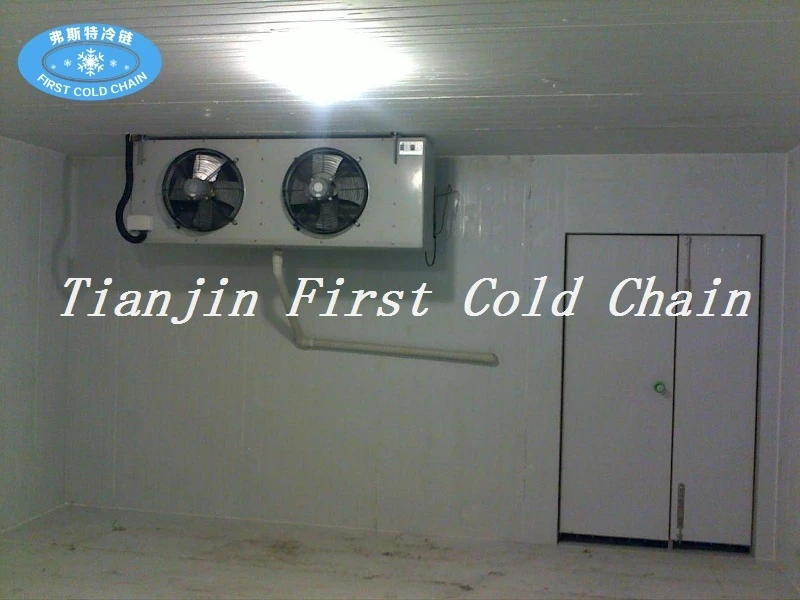

China Cold Room introduction

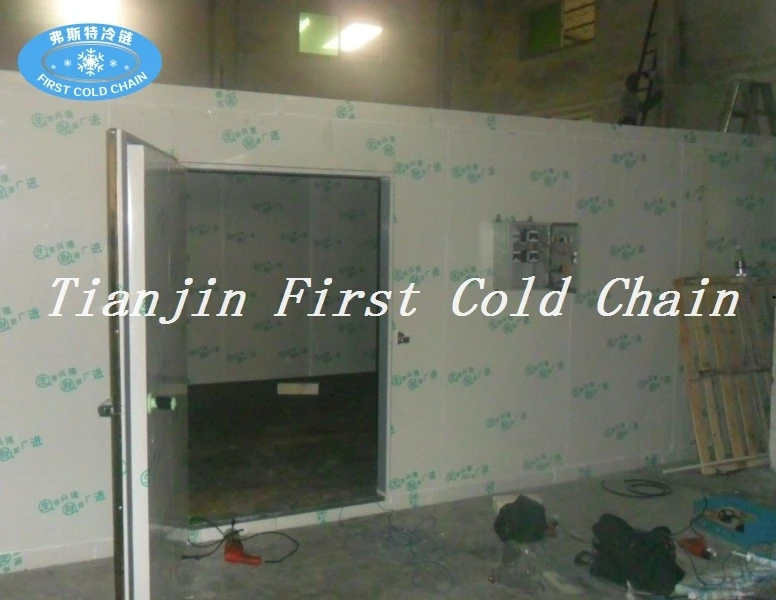

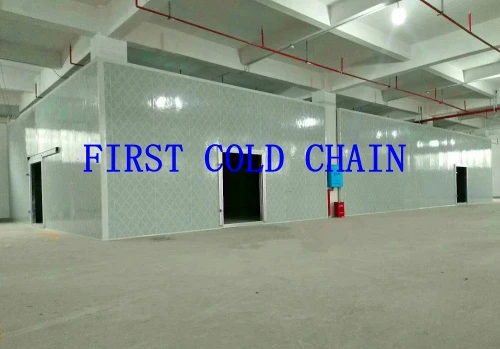

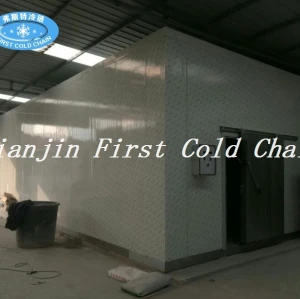

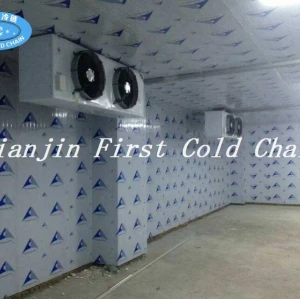

Cold Room Projects
(1) Temperature range: -40ºC~+20ºC are all available.
(2) Size: Customize.
(3) Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
(4) Fully automatic control system.
(5)Easy to install and dismantle
(6) Temperature Alarm
(7) Data Logger
(8)PLC electric control ( LG,SIMENS, OMRON..famous parts)
(9) Refrigerant:R22,R404A
Components:
(1) Condensing unit: Germany Bitzer, America Copeland, Italy Frascold ,China brand Etc.
(2) Evaporator: FST air-cooler.
(3) Insulation Panel: PU,
(4) Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG,Schneider
Application of cold room:
Food (meat,pork, beef,chicken freezer room, vegetable, fruit, dairy, drink chiller room ( cooler room...), Medicine, Chemical, Electronics...
Doors:

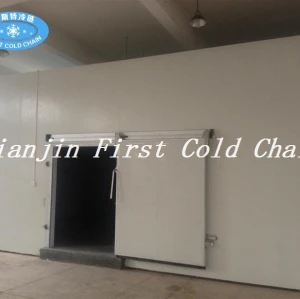

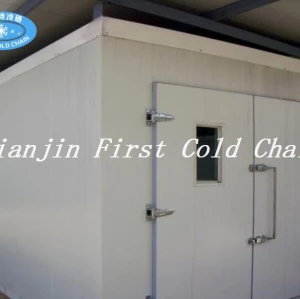

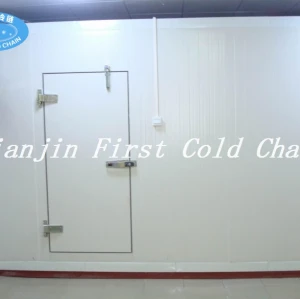

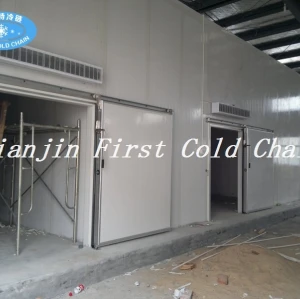

1).Swing door and sliding door for choice.
2).Swing door:manual opened,automatic,etc.
3).Door board made with special pressing technology PU material.
4).Door frame:color steel or stainless steel.
5).Surface material:color steel or stainless steel with protecting film.
Panels:
Cold room insulation panel:use 100%polyurethane insulation panel,density about 36~42kg/m3,with gasket,with flame retardant, fire-resistant panel thickness:50mm~200mm, standard width of panel is 960mm

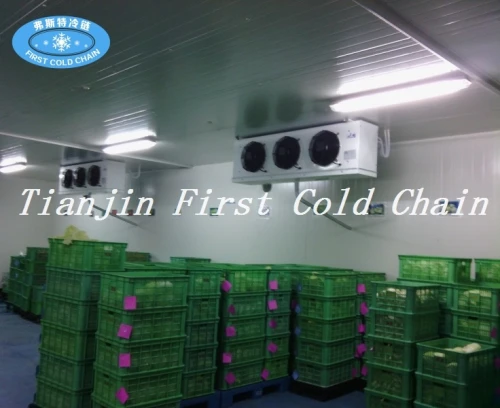

Evaporator type
Air Cooled Type | Ceiling type DL (5-20℃）DD（-5~+5 ℃）DJ（-18~-20℃） |
|---|---|
Aluminum shelving | Customize -18 ℃ or -35℃ |
Evaporator Cooled Type | Evaporator Condenser DJS (-30~-40℃) |
Room size type
Room size | Mini | Small | Middle | Big |
|---|---|---|---|---|
Volume range | 200m³ | 200~1000m³ | 1000~5000m³ | >5000m³ |
Temperature table for reference
Cold storage goods | Temperature range |
|---|---|
Processing room | 10℃ |
Fruit, vegetable, dry food | 0~-5℃ |
Medicine, cake, pastry, chemical material | 0~-5℃ |
Ice storage room | -5~-10℃ |
Fish, meat storage | -18~-25℃ |
Deep freezer. | -25C~-35℃ |
Compressor type and condenser
Compressor type | Bitzer(Germany) | Frascold (Italy) | Copeland (US) | China brand |
|---|---|---|---|---|
Condenser | Air cooled | Aater cooled | Evaporator | |
Panels information
Office Foam panel | 50mm thickness |
|---|---|
Processing room 10℃ | 50mm/ 75mm PU |
-5℃ | 75mm/ 100mm PU |
-18℃ | 100mm/ 150mm PU |
-25C/ -35℃ | 150mm/200mm PU |
Panel steel cover | SS, GI, aluminum etc |
