First cold chain 200kg/h tunnel freezer for avocadoes freeze from China
First cold chain 200kg/h  tunnel freezer for avocadoes freeze from China
First cold chain 200kg/h  tunnel freezer for avocadoes freeze from China
First cold chain 200kg/h  tunnel freezer for avocadoes freeze from China
Price
US $70000-100000
Model
FSW200
MOQ
1 set

Item specifics

Refrigerant
Freon
Structure
Assembled
Suitable for
Factory
Refrigeration System
Brand Compressor Unit
Size
Customized
Use Nature
Production
Usage
Food
Freezer Body Material
304 Stainless Steel
Specification
CE ISO9001
Transport Package
Seaworthy Plywood Case

Review

Description

                 Tunnel freezer Product Description

 China advantage tunnel freezer Specifications
1. Mature structure;
2. Food grade stainless steel;
3. Lower price, comparing with spiral freezer with same output capacity.
The structure of tunnel freezer is simple and reliable. It is a line from products inlet to products outlet. Because of the limitation of its structure, the length of tunnel freezer is much longer than spiral freezer with the same output capacity.
Its advantages (comparing with spiral freezer with same output capacity):
(1)Simple structure;
(2)The inlet device and outlet device are in the same height, while single drum spiral freezer must be one is lower and the other is higher;
(3) Lower price;

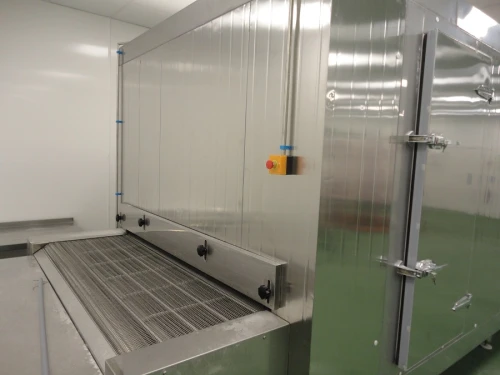

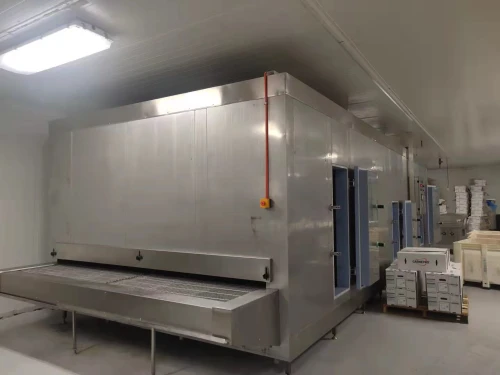

Tunnel freezer structure:

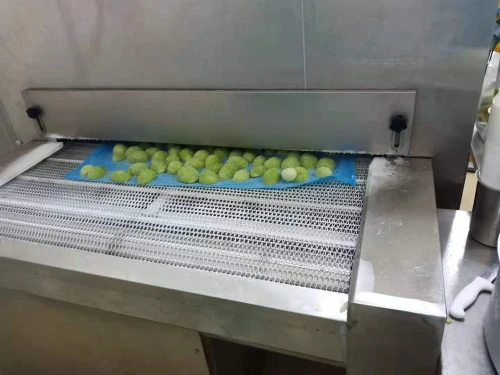

(1) Stainless steel conveyor belt;
(2) Sandwich PUF panels 150 mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Door is equipped with frame heating device;
(4) Aluminum evaporators, different fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Whole welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes;
(7) The inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10) well-know brand speed reducer.
The tunnel quick freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken.

FSW-200kg/h  QUICK FREEZER TECHNICAL PARAMETERS

Item

FSW200 fruit Frozen

Product

Fruit

Capacity

200kg/h

In/Out Temp.

+15 to -18

Freezer Temp.

-40

In/Out Time

6-30min

Refrigerant

R404A

Consumption

32kw

Freezing Container Thickness

150mm

Product Height

≤100mm

Belt Width

1300mm

Water Input Pressure

3 kg/cm2

Freezer Power

3.75 KW

In/out Guard Length

600/600 mm

Freezer SizeL*W*H

10801800×2300mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade plastic mesh belt; Frequency conversion step less speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption







Tunnel freezer structure diagram
tunnel freezer
