Efficient FSW600 Tunnel Freezer - Ideal for Shrimp Processing: Available for Distributors
- Price
- US $70000-80000
- Model
- FSW600
- MOQ
- 1 set
Item specifics
- Refrigerant
- R404A/R717
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System
- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Food
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description

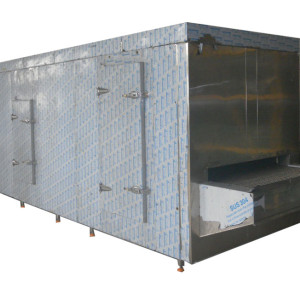

FSW600 Tunnel Freezer Product Description
The tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken,.
Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50mins.
Matched with double speed electric motor, widen the use bound as well as saving the energy.
Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50mins.
Matched with double speed electric motor, widen the use bound as well as saving the energy.
Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
1.Simple structure,convenient operation,long service life.
2.Library board adopts double stainless steel sandwich poyurethane insulation board,insulation performance is good,internal componets using high-quality stainless steel SUS304,easy cleaning,HACCP requirements.
3.Stainless steel mesh belt,the surface smooth,easy to clean.
4.Using water frost,ensure clean sanitation.
5.Invter control to realize infinitely adjustable speed, frozen foods frozen time is adjustable, can be applied to a lots of processing of frozen foods.
Tunnel freezer 600kg/h Parameters:
Throughput: 600kg/h
Refrigeration Capacity: 95kW/h
Freezer Room Size: L*W*H(M)
12.5*3*2.5
Exterior Size: L*W*H(M) 14.5*3*2.5
Power:10.3kw
In Feed Temperature( ºC ): +15
Out Feed Temperature( ºC ): -18
Inner Circulation Temperature(ºC):-35
Frozen Time(min): 10-50
Refrigerant: R717/R404A
Main Electric Brand: Schneider
2.Library board adopts double stainless steel sandwich poyurethane insulation board,insulation performance is good,internal componets using high-quality stainless steel SUS304,easy cleaning,HACCP requirements.
3.Stainless steel mesh belt,the surface smooth,easy to clean.
4.Using water frost,ensure clean sanitation.
5.Invter control to realize infinitely adjustable speed, frozen foods frozen time is adjustable, can be applied to a lots of processing of frozen foods.
Tunnel freezer 600kg/h Parameters:
Throughput: 600kg/h
Refrigeration Capacity: 95kW/h
Freezer Room Size: L*W*H(M)
12.5*3*2.5
Exterior Size: L*W*H(M) 14.5*3*2.5
Power:10.3kw
In Feed Temperature( ºC ): +15
Out Feed Temperature( ºC ): -18
Inner Circulation Temperature(ºC):-35
Frozen Time(min): 10-50
Refrigerant: R717/R404A
Main Electric Brand: Schneider
