China Tunnel Freezers 300kg/h with Stainless Steel and well know brand compressor for frozen food
- Price
- US $10000-150000
- Model
- FSW
- MOQ
- 1 set
Item specifics
- Refrigerant
- Freon
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System

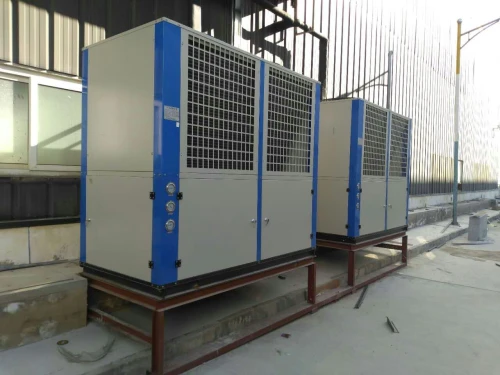

- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Food
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description

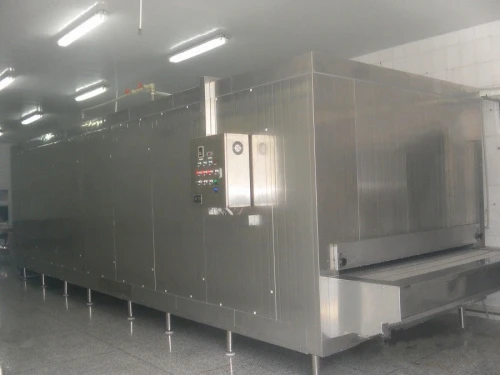

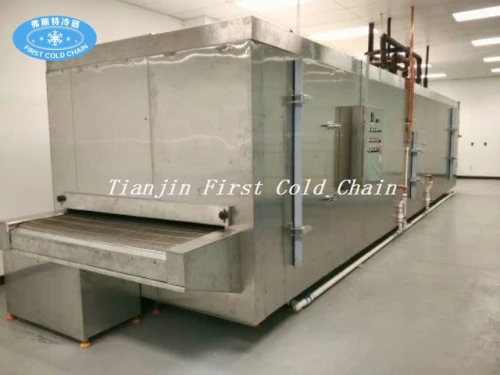

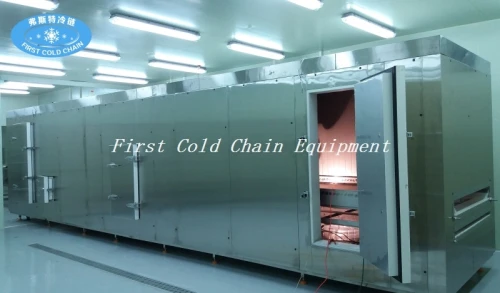

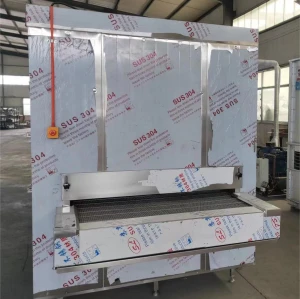

China Tunnel Freezers 300kg/h Product Description

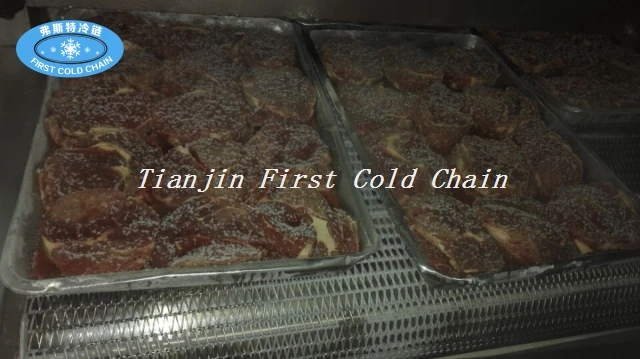

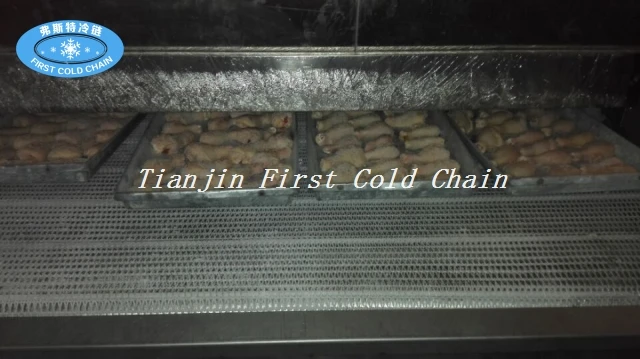

The tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken,.Short freezing time, adopted the good effect cross ventilation,
Matched with double speed electric motor, widen the use bound as well as saving the energy.

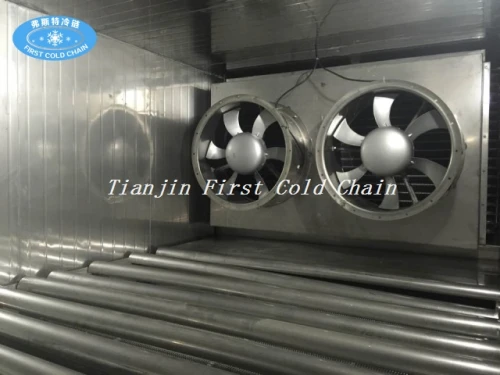

Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
Simple structure,convenient operation,long service life.
The panels adopts double stainless steel sandwich poyurethane insulation board,insulation performance is good,internal componets using high-quality stainless steel SUS304,easy cleaning,HACCP requirements.
the 300kg/h Tunnel freezer parameters as follow:
frozen product :meat
capacity: 300kg/h
cooling capacity: 45kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)

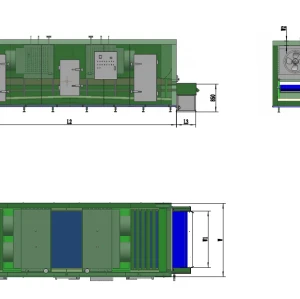

the spiral freezer body size: 12*2.3*2.4m
the materials use full stainless steel structure SUS304
the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel
the Electric Control Cabinet use Schneider Electric

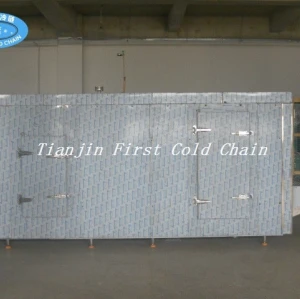

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150 mm Thickness

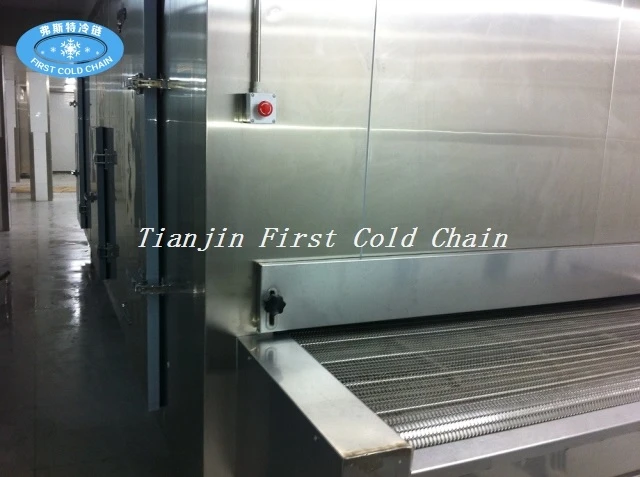

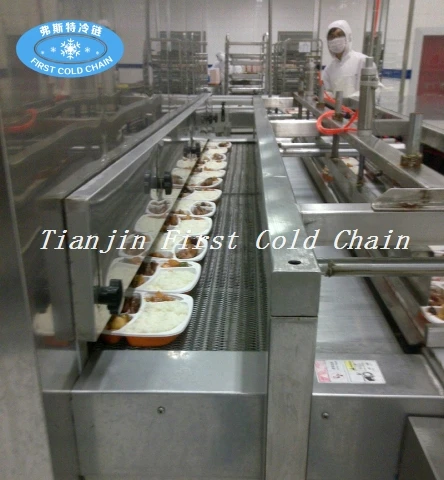

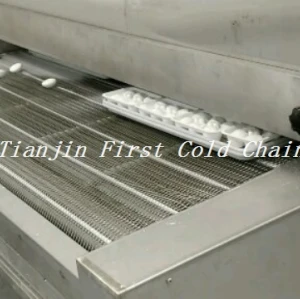

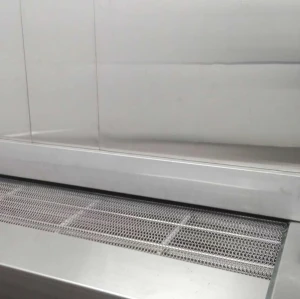

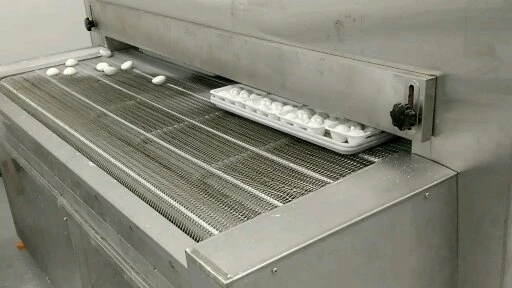

the conveyor belt we could use 2200 mm 1800 mm etc ,according to clients choice.
