Price
US $140000-150000
Model
FSW
Min. Order
1 set

Item specifics

Refrigerant
Freon
Structure
Assembled
Suitable for
Factory
Refrigeration System
Brand Compressor Unit
Size
Customized
Use Nature
Production
Usage
Food
Freezer Body Material
304 Stainless Steel
Specification
CE ISO9001
Transport Package
Seaworthy Plywood Case

Product review

Description

Tunnel freezer used for fish 1300kg/h Product Description
The Tunnel freezer is widely used in quick-freezing strip, cubic or grain food, such as ice cream, shrimp meat, shrimp, sliced fish, meat dumpling, divided meat and chicken.
1.Stainless steel mesh belt transmission
2.Short freezing time, adopted the good effect cross ventilation, with the frozen time 10 to 50mins.
3.Matched with double speed electric motor, widen the use bound as well as saving the energy.
4.Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
FSW1300kg/h  TUNNEL FREEZER TECHNICAL PARAMETERS

Item

FSW1300fish Frozen

Product

fish

Capacity

1300kg/h

In/Out Temp.

+15 to -18

Freezer Temp.

-38

In/Out Time

20-90min

Refrigerant

R404A

Consumption

230kw

Freezing Container Thickness

150mm

Product Height

≤100mm

Belt Width

2500mm

Product Input Conveyor/Output Conveyor

1000 mm

Water Input Pressure

3 kg/cm2

Freezer Power

27.6KW

Freezer SizeL*W*H

23500×3000×2500mm

Freezer Body Material

Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150 mm, 304 stainless steel outer plate thickness more than 0.8 mm

Main Electric Brand

Schneider(France)

Belt and Speed

Food-grade plastic mesh belt; Frequency conversion stepless speed regulation

Slide Track Material

Ultrahigh molecular polyethylene material.

Internal Structure

All made of 304 Stainless Steel Material, Argon arc welding

Evaporator

Effective from large aluminum finned tube set, stainless steel panel stent

Fan and Motor

Aluminum alloy stainless steel duct fan low noise and waterproof electric power consumption


Tunnel freezer structure diagramTunnel Quick Food Freezer with CAS Function (1000Kg/H Type)

Tunnel  Freezer

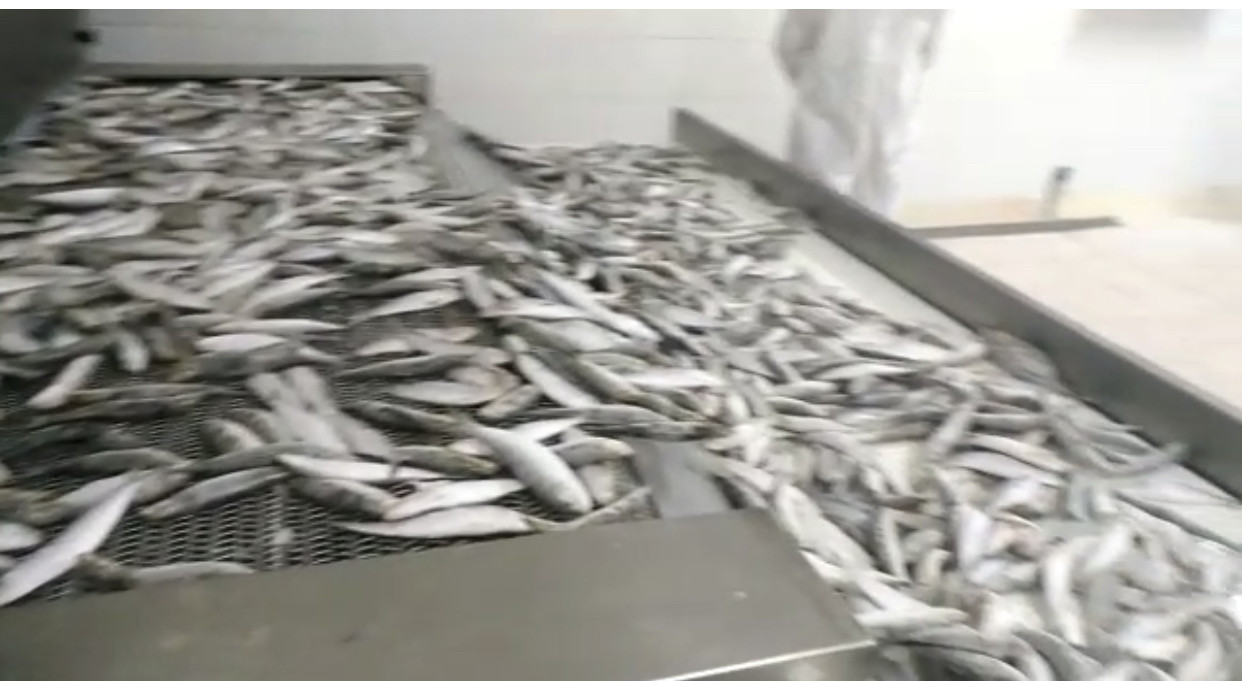

tunnel freezer for fish
