Model
FIM20

Review

Description

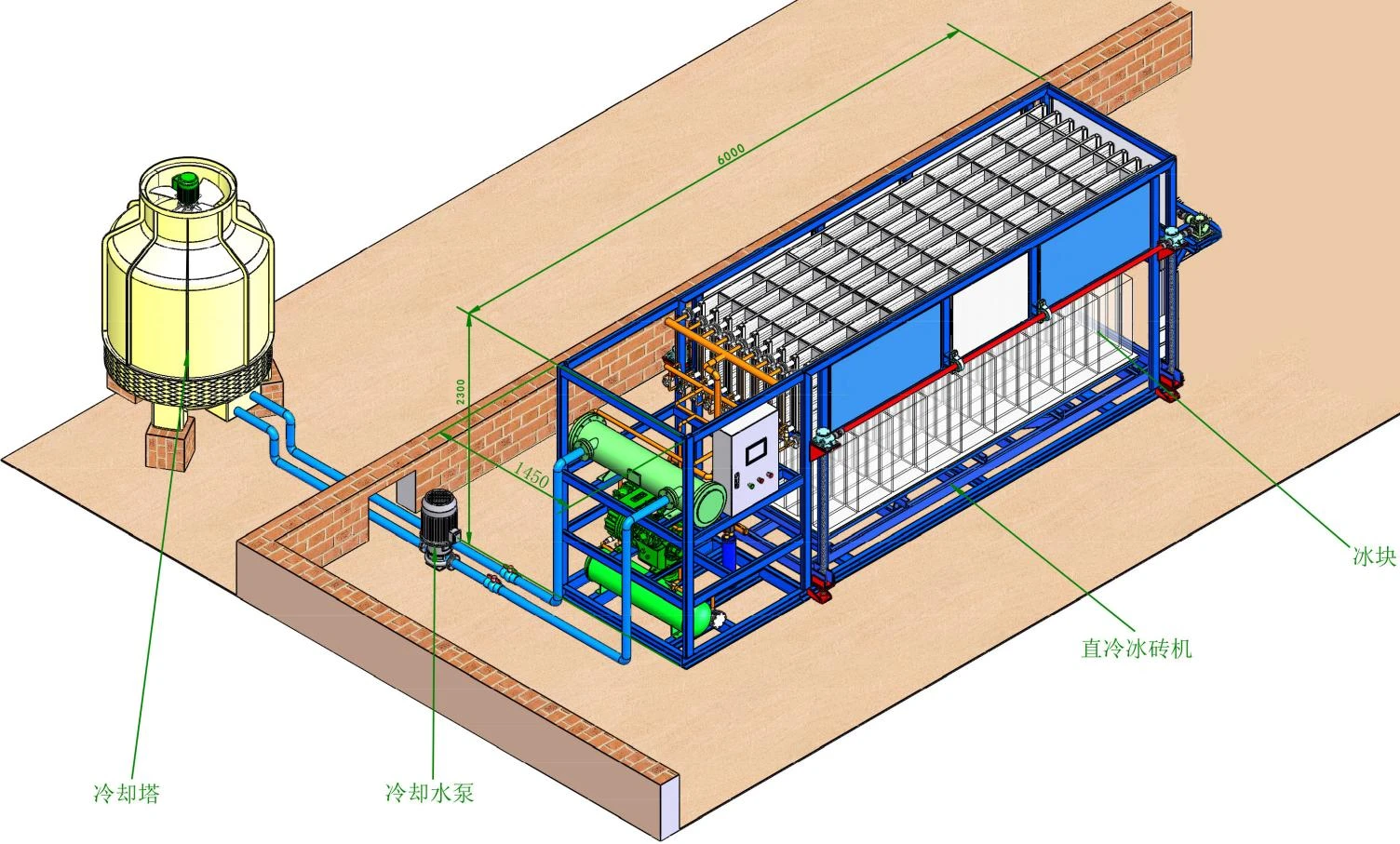

4T-10kg Block ice machine offer



Block ice machine Technical parameter


1. Maximum ambient temp.

+40

2.  Relative humidity

0.85

3. Water suppy temp.

+18

4. Power supply

3P/380V/50HZ

5. Refrigerant

R404A

6. Compressor type

Piston compressor

7. Cooling type

Water cooling

(2). Block ice maker parameter

No.

Ice weight

Ice mold size    mm)

Ice machine sizemm

Ice mold QTY.

Ice frozen time

Ice output (kg)/time

Daily output(kg)

1

10kg/block

220*100*600

4000*2050*2350

100

6 hours

1000

4000

(3). Performance parameter

No.

Parameter

Data

1

Product name

Direct cooling block ice machine

2

Model

FBM4-10 Block ice maker

3

Quantity

1 set

4

Designed ice output

4000kg/24 hours

5

Evaporating temp.

-20°C

6

Condensing temp.

+40°C

7

Rated ambient temp.

+25(Working ambient temp.range from +5to +40)

8

Rater water in temp.

+18(Water temp. range from +5to +21)

9

Compressor

Type

Piston compressor

Brand

Italy Refcomp

QTY.

1set

Model

SP-4L 220E

Refrigerating capacity

30.8 KW

Power

15.5 KW

10

Water cooling tower

Type

Counter current circular water tower

Model

LKT-20T

Circulating cooling water volume

16 m3/h

Size

1195F* 1590Hmm

Moter power

0.55 KW

11

Water cooling pump power

1.5 KW

12

Water filling pump power

0.75 KW

13

Hoister power

2.2 KW

14

Total power

20.5 KW

15

Control type

PLC programmable controller + touch screen

16

Block ice density

900~950kg/m3

(4). Main parts configuration

One

Refrigeration system

NO.

Product name

Brand

Origin

1

Compressor

Refcomp

Italy / Fujian, China

2

Water cooling condenser

Jiebang / Yilian

Guangzhou, China

3

Oil seperator

Fasco

Tianjin, China

4

Oil filter

Fasco

Tianjin, China

5

oil reservoir

Fasco

Tianjin, China

6

fluid reservoir

Fasco

Tianjin, China

7

Liquid-vapor separator

Fasco

Tianjin, China

8

Dry filter

Fasco

Tianjin, China

9

Backing gas filter cartridges

Fasco

Tianjin, China

10

Expansion valve

Danfoss

Denmark

11

Solenoid valve

DANFOSS

Denmark

12

Liquid glasses

DANFOSS

Denmark

13

Ball valve

DANFOSS

Denmark

14

Vibration absorber

HanLiShi

Korea

15

globe valve

AMG

Changzhou, China

16

check valve

MUELLER

America

17

Pressure controller

Danfoss

Denmark

18

Pressure gauge

REFCO

Switzerland

19

Water cooling tower

Geling

Dongguan, China

20

Water cooling pump

Yuanli

Taiwan, China

Two

Ice generator

19

Block ice generator

TJFST

Shenzhen, China

20

Lead screw lifting mechanism

TJFST

Shenzhen, China

Three

Control system

21

Electricity box

TJFST

China

22

Programmable controller (PLC)

LS

Korea

23

Touch screen

WEINVIEW

Taiwan

24

A.C. contactor

LS

Korea

25

Thermal Overload Relay

LS

Korea

26

Air switch

LS

Korea

27

Breaker

LS

Korea

28

Phase protector

Chint

Zhejiang, China

29

24V power

Chint

Zhejiang, China
