Price
US $7500-100000
Model
FSL
MOQ
1 set

Item specifics

Refrigerant
Freon
Structure
Assembled
Suitable for
Factory
Refrigeration System
Brand Compressor Unit
Size
Customized
Use Nature
Production
Usage
Food
Freezer Body Material
304 Stainless Steel
Specification
CE ISO9001
Transport Package
Seaworthy Plywood Case

Review

Description

Spiral IQF Freezer Product Description

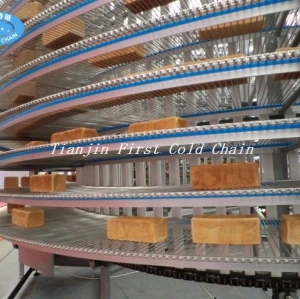

  • Spiral freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing
  • Structure:

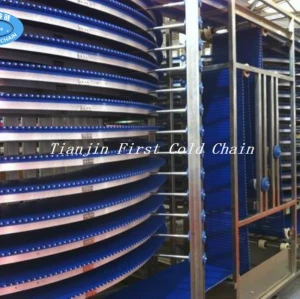

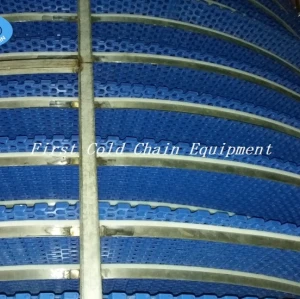

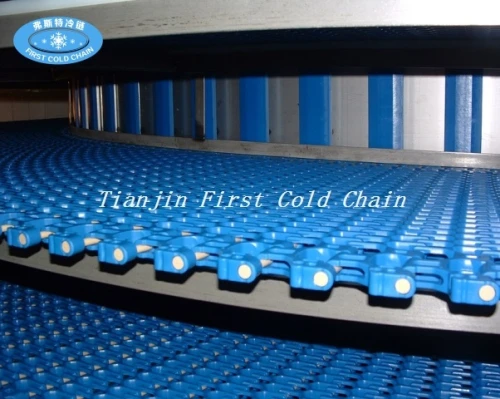

    • Stainless steel conveyor belt; equipped with safe guard both sides
    • Sandwich PUF panels laminated by stainless steel plate both sides floor panels are equipped
    • Door is equipped with frame heating device

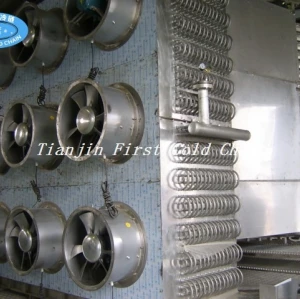

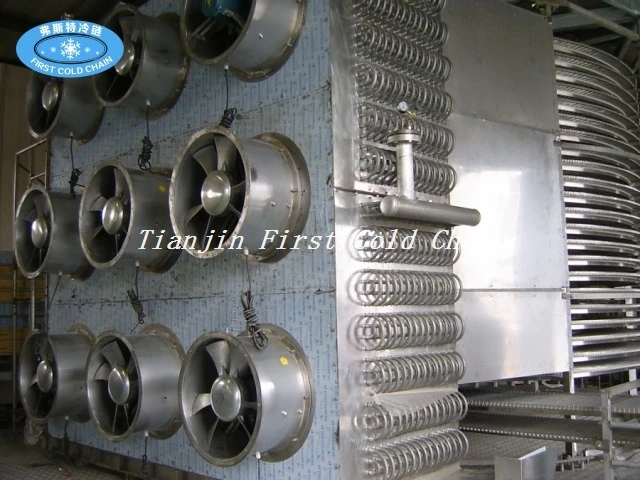

    • Aluminum evaporators, variable fin pitches
    • Axial fans: stainless steel air box, aluminum blades
    • Complete welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes
    • Drum, inlet device, outlet device and all structure parts are made of stainless steel

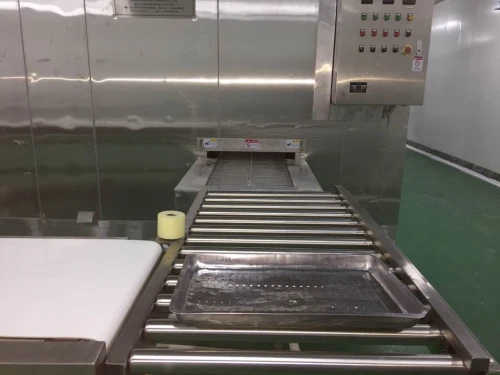

    • Control panel is made of stainless steel
    • Schneider or Siemens electric components
    • the 1500kg/h spiral freezer parameters as follow:

      frozen product :chicken breast

      capacity: 1500kg/h

      cooling capacity: 255kw (±40℃)

      refrigerant :R404A/R507A/R717

      inter/out temperature: +15/-18℃

      inside room temperature:-38±3℃

      freeze time :10-50min (adjust)

      the spiral freezer body size: 7*5*3.5m

      the materials use full stainless steel structure SUS304

      the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

      the Electric Control Cabinet use Schneider Electric

      the panels use double face stainless steel and  Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

      the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.
