Maximize Efficiency with China's Affordable Fluidized IQF Freezer for Green Bean Processing
- Price
- US $90000-100000
- Model
- FSLD
- MOQ
- 1 set
Item specifics
- Refrigerant
- Freon
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System
- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Vegetable & Fruit
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description
Fluidized IQF freezer Product Description
The best Fluidized bed IQF freezer for freeze all kinds of fruit & vegetable and some of the seafood
Working principle:
Working principle:
we have 2 kinds of freeze structure according to different product and capacity we adopt
1 stage or 2 stage freeze method:

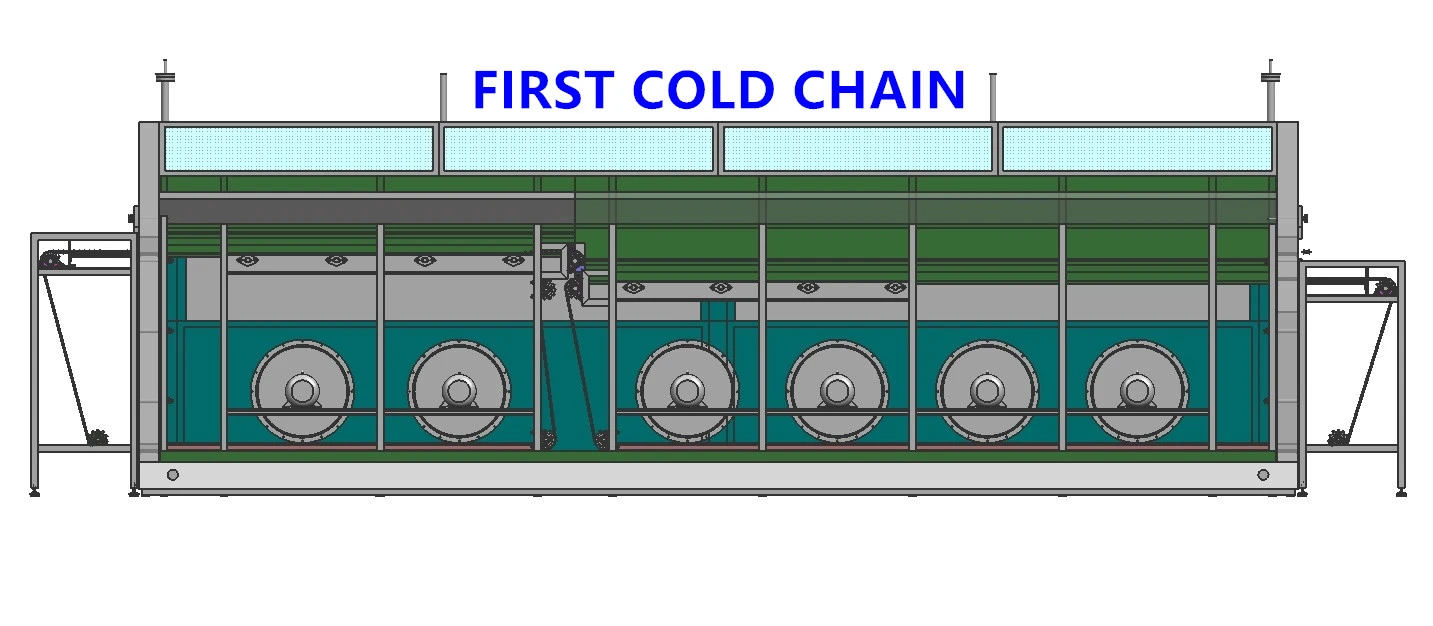

Adopts the two stage belting structure
First, quick-cooling stage
Second, deep-freezing stage
Independently speed control system, and the speed of the two mesh belts can be changed infinitely
1. Quick-cooling stage: the food particles are to be quick cooled after entering into the blast room
The surface of the particles would frozen and reach the temperature of 0°C
Meanwhile, with the help of the striking chain, the particles would neither stick together nor sticker on the stainless steel mesh belt

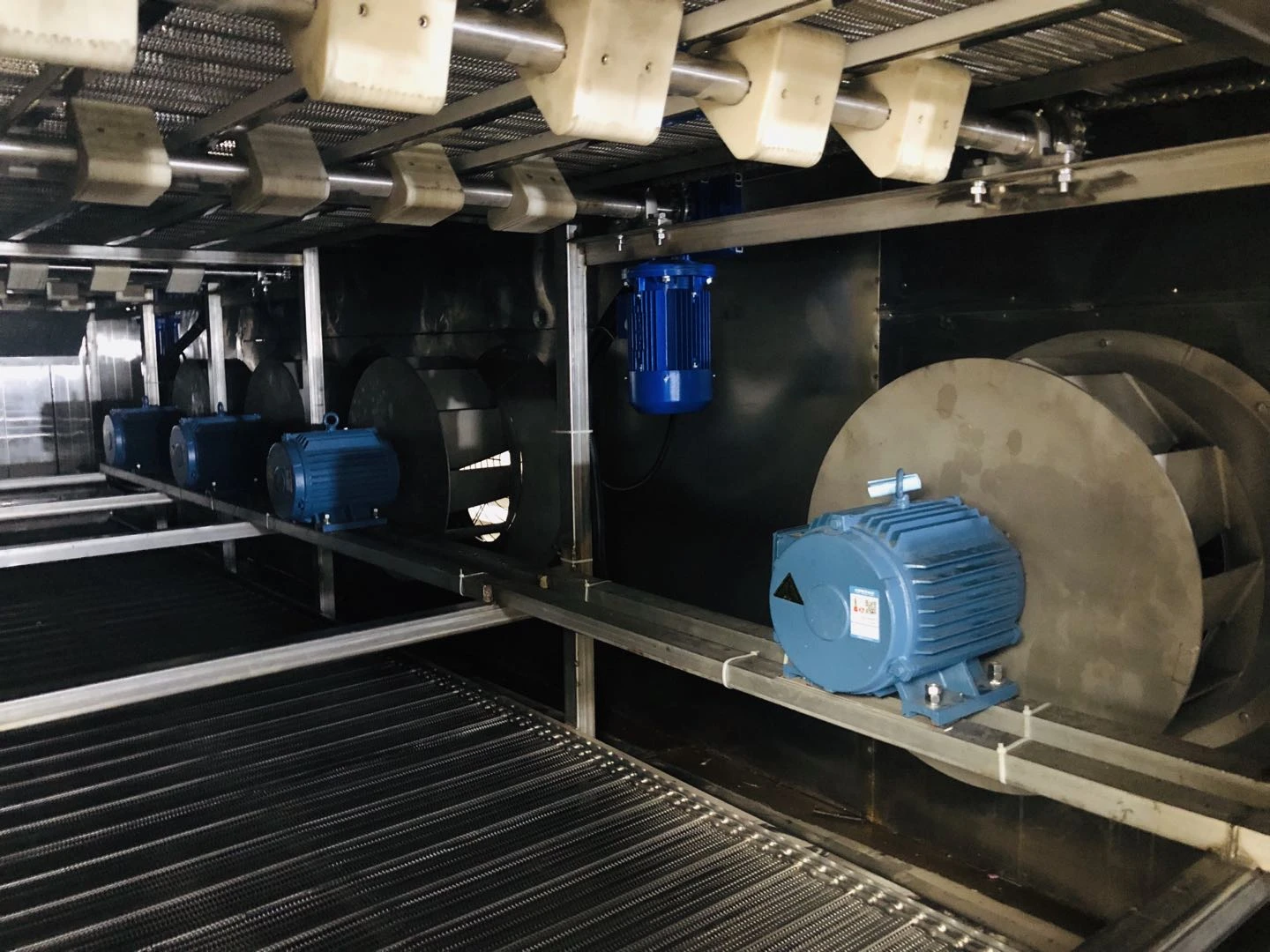

2.Deep-freezing stage: food is to be moved on a stainless steel mesh belt, the foodstuff layer loosens with the increasing of the airflow
Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspace among the foodstuff particles, that is the way the fluidized bed come into being
The floating particles frozen quickly and individually because they are blowing with strong cool air from all directions
Adopts the two stage belting structure
First, quick-cooling stage
Second, deep-freezing stage
Independently speed control system, and the speed of the two mesh belts can be changed infinitely
1. Quick-cooling stage: the food particles are to be quick cooled after entering into the blast room
The surface of the particles would frozen and reach the temperature of 0°C
Meanwhile, with the help of the striking chain, the particles would neither stick together nor sticker on the stainless steel mesh belt
2.Deep-freezing stage: food is to be moved on a stainless steel mesh belt, the foodstuff layer loosens with the increasing of the airflow
Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspace among the foodstuff particles, that is the way the fluidized bed come into being
The floating particles frozen quickly and individually because they are blowing with strong cool air from all directions
Fluidized IQF freezer Parameters:
Mode | FSLD500 | FSLD1000 | FSLD1500 | FSLD2000 | FSLD3000 |
|---|---|---|---|---|---|
Throughput±10%(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 |
Refrigeration capacity (kw/h) | 90 | 170 | 255 | 320 | 480 |
Freezer room size | 5×4.0×2.9 | 9*4.0*2.9 | 12×4.2×2.9 | 15×4.2×2.9 | 19×4.2×2.9 |
Exterior size | 7×4.0×2.9 | 11×4.0×2.9 | 14×4.2×2.9 | 17×4.2×2.9 | 21×4.2×2.9 |
Power(Kw) | 19 | 35.2 | 49.2 | 61.2 | 78 |
In feed temperature | +15℃ | +15℃ | +15℃ | +15℃ | +15℃ |
Out feed temperature | -18℃ | -18℃ | -18℃ | -18℃ | -18℃ |
Inner circulation temperature | -35±2℃ | -35±2℃ | -35±2℃ | -35±2℃ | -35±2℃ |
Frozen time(Min) | 6-30 | 6-30 | 6-30 | 6-30 | 6-30 |
Refrigerant | R717/R404A | R404A/R717 | R404A/R717 | R404A/R717 | R404A/R717 |
