China High Quality IQF machine for vegetables /quick freeze machine
- Price
- US $50000-200000
- Model
- FSLD
- MOQ
- 1 set
Item specifics
- Refrigerant
- Freon
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System
- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Vegetable & Fruit
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description

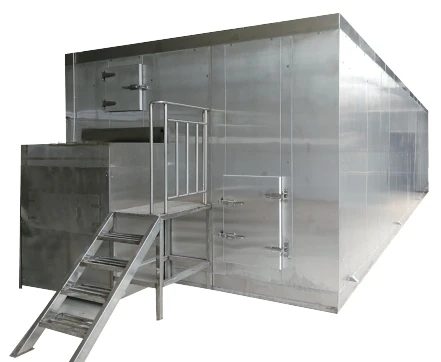

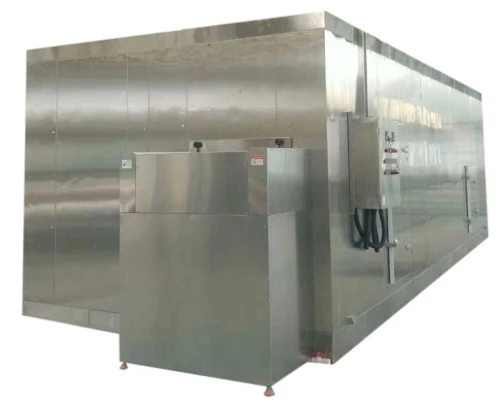

Fluidized IQF Freezer Product structure Description
IQF Freezer Mechanical transmission:
1. Conveyor belt, chain network USES the food grade bright spring SUS304 stainless steel, with smooth surface, plate, wear shaft connected with flexible operation, large roller transmission chain net rolling;
2. Mesh belt and guide slide friction in contact area using high molecular wear-resisting PVC materials. Make guide slide friction is more reliable when in contact with the mesh belt and separation, not to drop crumbs, ensure the security of the frozen goods.
3. Inlet platform fortification material ultra-high transfinite device, adjustable stainless steel wind insulation device; discharging mouth platform set up automatic blanking.
4. The transmit driver using frequency conversion speed reducer, mesh belt running frequency control of motor speed, frozen time adjusted.Evaporator, and Defrosting:
1. Evaporator according to feed liquid evaporation temperature -42 ℃ design selection.
2. Evaporator using efficient is treated by surface oxidation rust from aluminum finned tube, to ensure uniform frost, air flow, bracket plate shell adopts stainless steel wind.
3. With high efficiency and energy saving, low noise axial flow fan, ram is stainless steel, it is anti-rust aluminum alloy blades, motor is fully enclosed moisture proof waterproof at low temperature, stable running.
4. adopts manual water/fan defrosting method, defrosting water spray device in evaporator, strong frost uniform, rapid, complete, water defrosting drain avoid ice blocking drainage and wind circulation, fortification defrosting water splash.
Electric control:
1. All motors and power distribution cabinet external electrical components is not lower than IP55 protection grade, motor uses Y2 type waterproof.
2. Equipment, safety protection device is installed inside, can timely show abnormal of equipment operation, so that timely troubleshooting, import and export are equipped with an emergency stop device.
3. Electrical materials: the main control electrical components mainly adopts Schneider brand.
