China first cold chain full automatic IQF machine 1500kg/h for frozen Fires
- Price
- US $90000-100000
- Model
- FSLD1500
- MOQ
- 1 set
Item specifics
- Refrigerant
- Freon
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System
- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Vegetable & Fruit
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description
the IQF machine 1500kg/h parameters as follow:

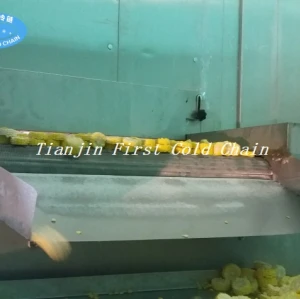

frozen product :fries
capacity: 1500kg/h
cooling capacity: 255kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :10-50min (adjust)

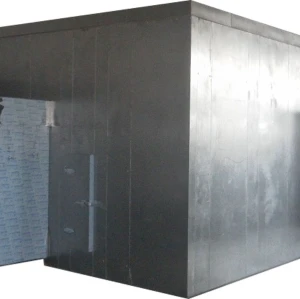

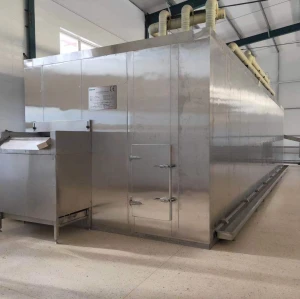

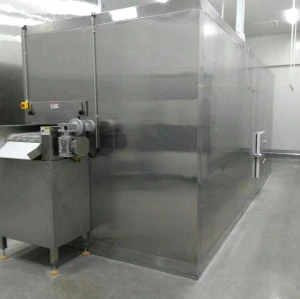

the spiral freezer body size: 15*4.2*3m
the materials use full stainless steel structure SUS304
the evaporator use high effective large anti-rust aluminum finned tube group, the rest of the 304 stainless steel.

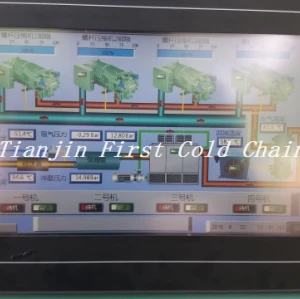

the Electric Control Cabinet use Schneider Electric
the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

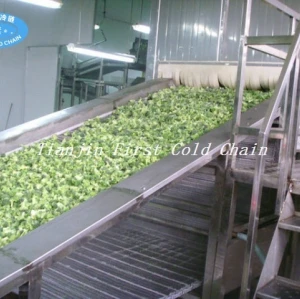

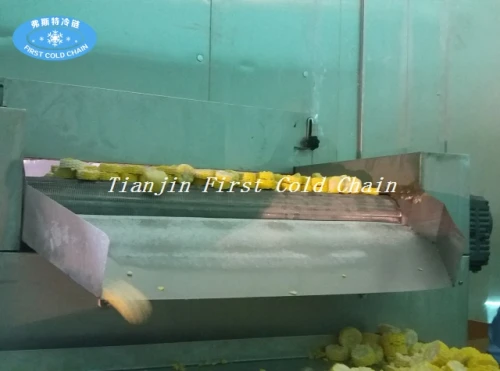

the conveyor belt we could use 1200mm etc ,according to clients choice.Food-grade stainless steel belt; Frequency conversion stepless speed regulation

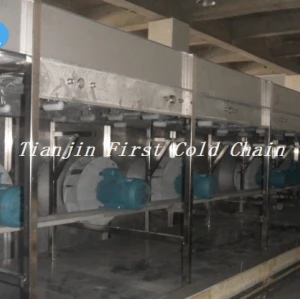

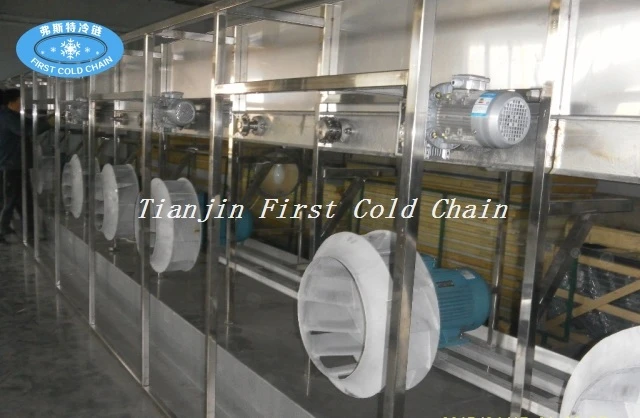

Fan and Motor use high wind volume stainless steel centrifugal fan low noise fan and waterproof motor
Refrigeration system we adopt bitzer brand screw compressor unit.ensure the freeze effective
