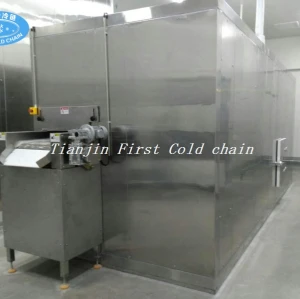

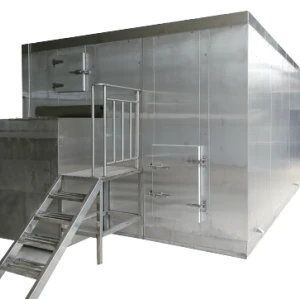

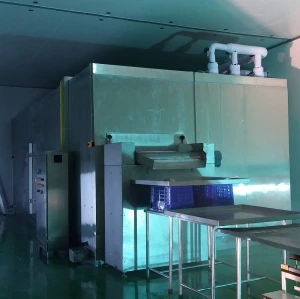

Fluidized quick freezer machine / IQF Freezer 1000kg/h for freeze Fruit and vegetable
- Price
- US $50000-100000
- Model
- FSLD
- MOQ
- 1 set
Item specifics
- Refrigerant
- Freon
- Structure
- Assembled
- Suitable for
- Factory
- Refrigeration System
- Brand Compressor Unit
- Size
- Customized
- Use Nature
- Production
- Usage
- Vegetable & Fruit
- Freezer Body Material
- 304 Stainless Steel
- Specification
- CE ISO9001
- Transport Package
- Seaworthy Plywood Case
Review
Description
the 1000kg/h Fluidized iqf freezer parameters as follow:
frozen product :blueberries
capacity: 1000kg/h
cooling capacity: 170kw (±40℃）
refrigerant :R404A/R507A/R717
inter/out temperature: +15/-18℃
inside room temperature:-38±3℃
freeze time :6-30min (adjust)
the spiral freezer body size: 11*4.2*3m
the materials use full stainless steel structure SUS304
the evaporator use high effective large anti-rust aluminum finned tube group, the rest of the 304 stainless steel.
the Electric Control Cabinet use Schneider Electric

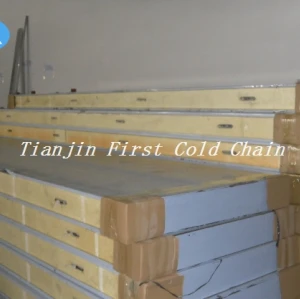

the panels use double face stainless steel and Self-extinguishing Flame Retardant Polyurethane 150mm Thickness
the conveyor belt we could use 1200mm etc ,according to clients choice.Food-grade stainless steel belt;
Frequency conversion stepless speed regulation
Fan and Motor use high wind volume stainless steel centrifugal fan low noise fan and waterproof motor
Refrigeration system we adopt bitzer brand screw compressor unit.ensure the freeze effective
