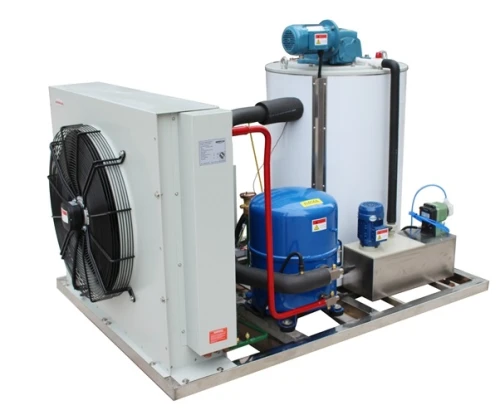

5000kg/24h Flack ice making /maker machine for supermarket
- Price
- US $15000-18000
- Model
- FST5T
- MOQ
- 1 set
Item specifics
- Application Fields
- Food Processing
- Condition
- New
- Ice Shape
- Flake ice
- Materia
- 304 Stainless Steel Outer Plate
- Refrigerating System
- Brand Compressor Unit
- Cooling Way
- Air cooling or water cooling
- Certification
- ISO, CE, CCC
- Automation
- Automation
- Transport Package
- Seaworthy Plywood Case
- Ice temperature
- -5℃~ -7℃
Review
Description
Flack ice making Product Description
Higher refrigeration efficiency and lower loss of refrigeration capacity

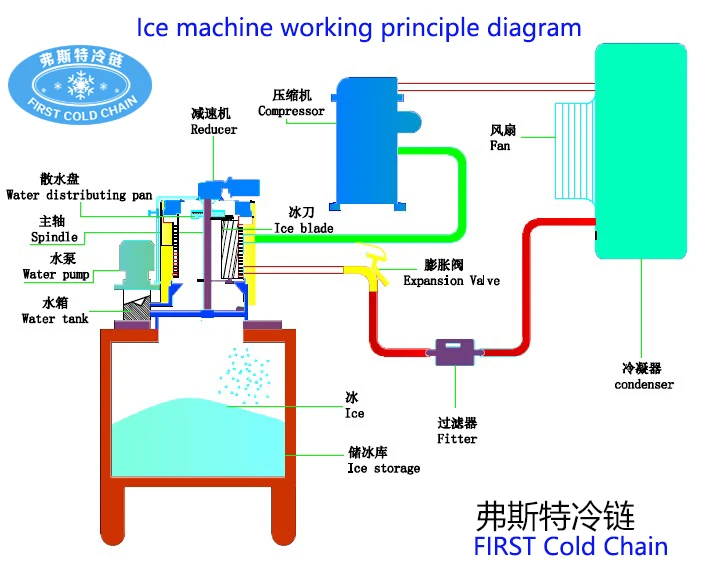

Automatic flake ice machine adopts the latest vertical evaporator with inner helix ice cutter. In the process of ice making, the water distribution device in ice maker sprays water even on the internal surface of ice maker to frozen in a short time. After ice formed, the helix ice cutter drops down and cut ice. In this method, it makes a full use of evaporator and increase the efficiency of ice making.
High quality, dry and non-caked
The thickness of flake ice which produced by automatic plate ice machine with vertical evaporator is about 1mm to 2mm. The ice shape is irregular flake ice and it has good mobility..
Simple structure and small land area
The series of ice flat has different kinds including fresh water type, seawater type, fixed cold source type, equip cold source by customer, and ice flat machine with cold room. And the daily capacity is ranges from 200kg to 60000kg. Customers can choose suitable machine according to site and different water quality. Compared to traditional ice making machine, it has advantage of small land area and low operation cost (no man for ice harvest)..
Ice maker Parameters:
Ice output:5000kg/24hrs
Compressor:Germany Bitzer
Ice machine size:1750*1550*1600mm
G.W.:765kg
Standard power supply:3P/380V 50HZ
Total power:23.12 KW
Refrigerating capacity:30 KW
Refrigerant:R404A
Cooling type:Water cooling
NOTE:
Ice storage room is optional according to customers' request with extra price.
Standard cooling type:water cooling(Equipped with water tower)
High quality, dry and non-caked
The thickness of flake ice which produced by automatic plate ice machine with vertical evaporator is about 1mm to 2mm. The ice shape is irregular flake ice and it has good mobility..
Simple structure and small land area
The series of ice flat has different kinds including fresh water type, seawater type, fixed cold source type, equip cold source by customer, and ice flat machine with cold room. And the daily capacity is ranges from 200kg to 60000kg. Customers can choose suitable machine according to site and different water quality. Compared to traditional ice making machine, it has advantage of small land area and low operation cost (no man for ice harvest)..
Ice maker Parameters:
Ice output:5000kg/24hrs
Compressor:Germany Bitzer
Ice machine size:1750*1550*1600mm
G.W.:765kg
Standard power supply:3P/380V 50HZ
Total power:23.12 KW
Refrigerating capacity:30 KW
Refrigerant:R404A
Cooling type:Water cooling
NOTE:
Ice storage room is optional according to customers' request with extra price.
Standard cooling type:water cooling(Equipped with water tower)
