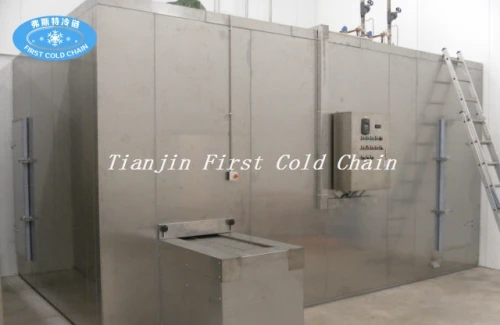

Professional Spiral Freezer Machine for Hamburger auto processing line in China

• Stainless steel conveyor belt; equipped with safe guard both sides
• Sandwich PU panels laminated by stainless steel plate both sides floor panels are equipped
• Door is equipped with frame heating device

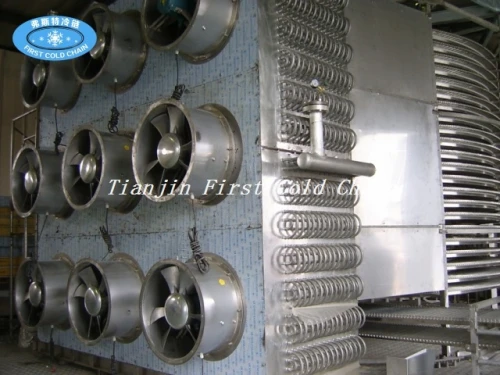

• Aluminum evaporators, variable fin pitches

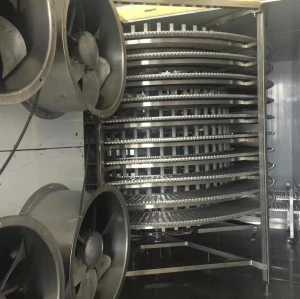

• Axial fans: stainless steel air box, aluminum blades
• Complete welded stainless steel water discharging plate will be installed on top of floor panels. It will bring defrosting water out of cabinet through many stainless steel draining pipes

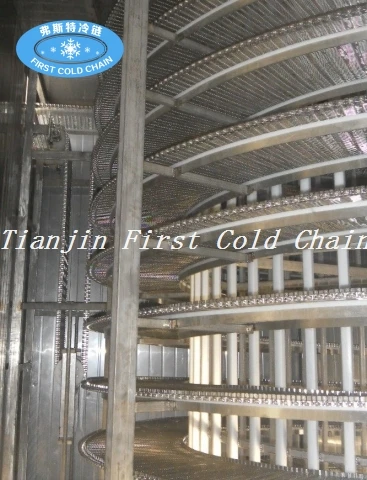

• Drum, inlet device, outlet device and all structure parts are made of stainless steel
• Control panel is made of stainless steel
• Schneider or Siemens electric components

the 2500kg/h spiral freezer parameters as follow:

frozen product :fish

capacity: 2500kg/h

cooling capacity: 420kw (±40℃）

refrigerant :R404A/R507A/R717

inter/out temperature: +15/-18℃

inside room temperature:-38±3℃

freeze time :10-50min (adjust)

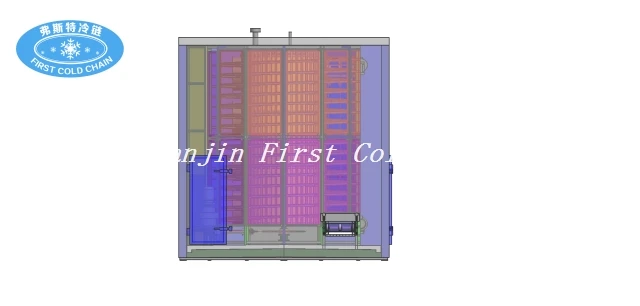

the spiral freezer body size: 10*7*3.5m

the materials use full stainless steel structure SUS304

the evaporator use large anti-rust aluminum finned tube group, the rest of the 304 stainless steel

the Electric Control Cabinet use Schneider Electric

the panels use double face stainless steel and  Self-extinguishing Flame Retardant Polyurethane 150mm Thickness

the conveyor belt we could use 600mm,650mm,710mm etc ,according to clients choice.
