Full automatic FPL1000 Frozen French Fries Processing line for fries process
Full automatic FPL1000 Frozen French Fries Processing line for fries process
Full automatic FPL1000 Frozen French Fries Processing line for fries process
Full automatic FPL1000 Frozen French Fries Processing line for fries process
Full automatic FPL1000 Frozen French Fries Processing line for fries process
Full automatic FPL1000 Frozen French Fries Processing line for fries process
Price
US $20000-150000
Model
FSLD1000
MOQ
1 set

Item specifics

Material
304 stainless steel
Power source
Electric
Size
Customized
Voltage
380V
Specification
CE ISO9001
Transport Package
Seaworthy Plywood Case

Review

Description

Features of Frozen French Fries Processing line

♡ Various choices. We supply100~1000 kg/h for customers.
♡ Longer service life. Stainless steel to guarantee a longer service life for processing larger quantity of French fries.
♡ High efficiency and energy saving. Excellent quality and Low oil consumption.
♡ Easy operation and multifunctional usage.
♡ Comparative price and high rate of profitable return.

Equipment name

Equipment introduced

feeding  machine

 use:It  can  separate  the  stones  from  the

potatoes.

 features:  sus  304,  easy  maintenance,  easy cleaning no rust

(3) technical parameters:

Size: 3000*600*1500mm

Power: 0.37KW/380v/50Hz

Mesh    belt width: 600 mm

Frame:   50*50*2mm   rectangle  stainless  steel square tube





washing  and

peeling

 machine

(1) use: wash and peel potatoes

(2) features:    spiral    discharge    to    achieve continuous  production,  imported  nylon  wool roller, durable, stainless steel frame structure.

(3) technical parameters:

Dimensions:   3200*760*1650mm,

wool   roller

length: 2.8meters

Power: 4.75kw /380v/ 50Hz









Wool roll: 9 pcs

(4) material disposition

Drive motor: motor, discharge motor

Spiral    teeth:    stainless    steel    plate    bending production

Other    material:    304    stainless    steel    plate, welding and shearing and bending

















3.Pick line

(1) use: after cleaning the peeled potatoes for artificial selection, removal of non clean areas, as well as substandard materials

(2)  features:  smooth  running,  stainless  steel frame     structure,     easy     maintenance,     easy cleaning.                                                                                    (3) technical parameters:

Dimensions: 5000*600*750mm

Power: 1.1kw /380v/ 50Hz

Conveyor belt width: 600 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt: PVC mesh belt

Frame:   50*50*2mm   rectangle   stainless   steel square tube

















4.Lifting

machine



(1) use: after the artificial selection of potatoes into the strip cutting machine for cutting

(2) features: smooth running, stainless steel frame structure, easy maintenance, easy cleaning.

(3) technical parameters:

Dimensions: 2000*600*1350mm

Power: 0.75kw /380v/ 50Hz

Conveyor belt width: 500 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt:sus 304 mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube













5.Cut machine

(1) use: after cleaning the peeled potatoes cut strip processing

(2)   features:   imported   from   Taiwan,   blade durable, smooth operation. Cut into the rinsing machine directly into the rinsing process.

(3) technical parameters:

Dimensions: 1070*560*900mm

Power: 1.5kw /380v/ 50Hz

Cut size: 7-16mm

(4) material disposition

Motor: Motor

Frame material: aluminum alloy













6.Washing

machine

(1)   use:   Rinse   potato   strips   ,remove   excess starch.

(2)  features:  smooth  running,  stainless  steel frame     structure,     easy     maintenance,     easy cleaning.

(3) technical parameters:

Dimensions: 6000*1000*1300mm

Power: 1.5kw /380v/ 50Hz,

fan power:6kw/380v/50hz

Mesh belt width:600mm

(4) material disposition

Frame: 50*50*2mm rectangle stainless steel square tube















7.blanching

machine

(1)use:use60-95 degrees hot water blanching fries, remove starch, bleaching hot color.

(2)features:diesel heating,with the overall lifting function, easy to   clean,maintenance,easy to clean.

(3) technical parameters:

Dimensions: 8000*1000*950mm

Power:5.3kw/380v/50Hz, transmission: 1.5kw,circulating water     pump: 3kw,

Lift power:1.1kw,diesel heating power:300000kcal

Conveyor belt width: 800 mm,

(4) material disposition

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube









8.Vibrating

(1) use: remove the not good strips and water.

(2) features:  smooth  running,  stainless  steel frame     structure,     easy     maintenance,     easy cleaning.

(3) technical parameters:

Dimensions: 2000*800*950mm

power: 0.24kw /380v/ 50Hz,    width: 800 mm,

(4)material disposition                                               2mm stainless steel plate













9.dewatering

machine

(1) use: to remove the water after blanching the surface of excess water,

(2)features:smooth running, stainless steel

frame structure, easy maintenance,easy cleaning.                                                        (3) technical parameters:

Dimensions: 5000*1000*1150mm.

Total power: 3.75kw /380v/ 50Hz,

transmission:   0.75kw,fan: 0.75*4

Conveyor belt width: 600 mm,

(4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube



 10.Frying

machine

(1) use: It can fry the potato strips.

(2) features: with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-220C can be adjusted, frying time variable frequency speed regulation.

(3) technical parameters:

Dimensions: 9000*1000*2100mm

transmission power: 1.5kw, oil pump: 1.5kw*4

lift power: 1. 1kw ,diesel heating

power:4800000kcal,

Conveyo rbel

twidth:600mm,

 (4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame: 50*50*2mm rectangle stainless steel square tube.











11.Vibrating

(1)  use:  Shake the  oil  and  smooth  the  French fries.

(2)  features:  smooth  running,  stainless  steel frame     structure,     easy     maintenance,     easy cleaning.

(3) technical parameters:

Dimensions: 2000*800*950mm

power: 0.24kw /380v/ 50Hz,    width: 800 mm,

(4)material disposition                                                 2mm stainless steel plate

















12.cooling

machine

(1)  use:  to  remove  the  fries  after  frying  the surface of excess oil, but also can quickly cool down.

(2) features: the device is equipped with a drip pan, blew through oil pan collected and reused, while saving oil can make the chips not greasy taste better, convenient storage.                                   (3) technical parameters:

Dimensions: 5000*1000*1150mm.Total power: 4.75kw   /380v/   50Hz,   transmission:   0.75kw,

fan: 0.75*4    Conveyor belt width: 600 mm, (4) material disposition

Drive motor: worm gear motor

Conveyor belt: stainless steel mesh belt

Frame:   50*50*2mm   rectangle   stainless   steel square tube

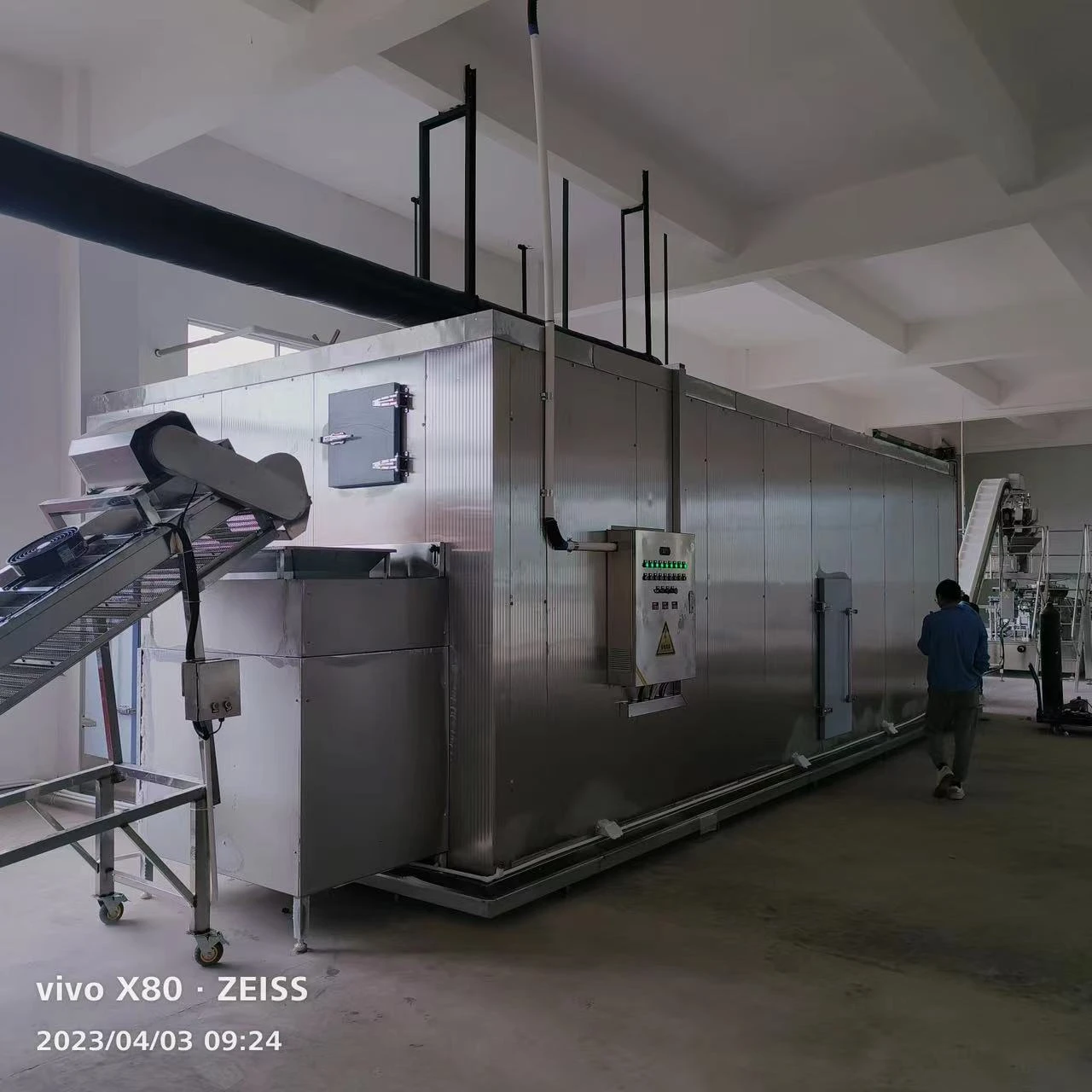

fluidized IQF freezer
