Price
US $80000-100000
Model
FDSL
MOQ
1 set

Item specifics

Refrigerant
R404A/R717
Structure
Assembled
Suitable for
Factory
Refrigeration System
Brand Compressor Unit
Size
Customized
Use Nature
Production
Usage
Food
Freezer Body Material
304 Stainless Steel
Specification
CE ISO9001
Transport Package
Seaworthy Plywood Case

Review

Description

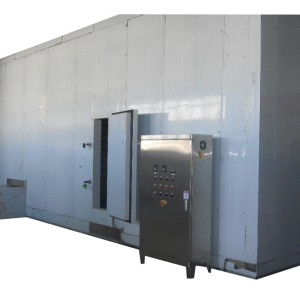

China spiral freezer Product Description

FDSL series double spiral freezer machine is a kind of high efficiency, energy saving quick-frozen device

It covers an area of small, and the advantages of compact structure, database is big, become modern quick-frozen food companies preferred
It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.

Spiral freezer Main application:
The spiral freezer is widely used in the quick frozen for prepared foods, packaged foods, intersected meats, ice creams etc. It is also applicable for sea foods, fruits, and other vegetables which is with bigger size.
Main features of spiral freezer:
(1) Aluminum evaporators, different fin pitches; SUS304 stainless steel frame construction;
(2) Axial fans: stainless steel air box, aluminum blades. Closed type, moisture and water proof motor;
(3) Spiral tower and bracket made of stainless steel, the pontes between the mesh belt is made of macromolecule polyethylene anti-frication material;
(4) Stainless steel conveyor belt, equipped with safe guard both sides;
(5) Drive motor installed outside of the refrigerator with no oil inside the refrigerator and convenient to maintain;
(6) Sandwich PUF panels laminated by stainless steel sheet both sides;
(7) The bottom panels are equipped with drainage slot in the bottom board to prevent ponding and avoid cold bridge;
(8) Door is equipped with frame heating device;
(9) The wind drum, inlet device, outlet device and all structure parts are made of stainless steel;
(10) Control panel is made of stainless steel, PLC and touch screen control displaying data for time, working status, frozen time, inner temperature, conveyor speed and ect.;

twin drum spiral freezer
